Globe Valves
Leading Manufacturers, Exporters, Wholesaler and Retailer of Cast Steel Globe Valve and Forged Steel Globe Valve from Hubli.
| Business Type | Manufacturer, Exporter, Supplier, Retailer |
| Download |  View |
| Material | Cast Steel |
| Certification | ISI Certified |
| Power | Hydraulic |
| Structure | Double Half Shaft |
| Features | Blow-Out-Proof, Casting Approved, Durable |
| Port Size | 0.1mm-5cm, 2cm-50cm |
| Technic | Gear Operated |
| Number Of Way | 2way |
Preferred Buyer From
| Location | Anywhere in India |
We are engaged in manufacturing, exporting and supplying of Cast Steel Globe Valve. We understand that various applications of the industries depend on Cast Steel Globe Valve, therefore we provide quality-tested Globe Valve to the customers. Our Globe Valve has flawless design structure. Customers can get Cast Steel Globe Valve from us at market leading rates.
Features
- OS & Type, Bolted bonnet.Plug Type Disc.
- Design Std. BS 1873 /ANSI 16.34 .
- Face to Face Dimension as per B 16.10.
- Testing as per BS 6755-1/ EN ISO 12266-1.
- Valves with back seat arrangement.
- Flange Drilling as per ANSI B16.5 RF Serrated / Buttweld ends as per B16.25
On Request
- Parabolic plug for linear characteristics.
- Guided & Soft seat plug .
- Locking arrangement.
- Gear/Electrical Actuator.
- NACE as per MR-01-75.
- Stellited Hard face.
- For low temp & Cryogenic Service as per BS 6364.
- Jacketed valves.
| Business Type | Manufacturer, Exporter, Supplier, Retailer |
| Download | View |
| Material | Carbon Steel |
| Certification | ISO 9001:2008 Certified |
| Power | Hydraulic |
| Features | Blow-Out-Proof, Casting Approved, Durable, Investment Casting |
| Port Size | 2cm-50cm |
| Number Of Way | 2way |
Preferred Buyer From
| Location | Anywhere in India |

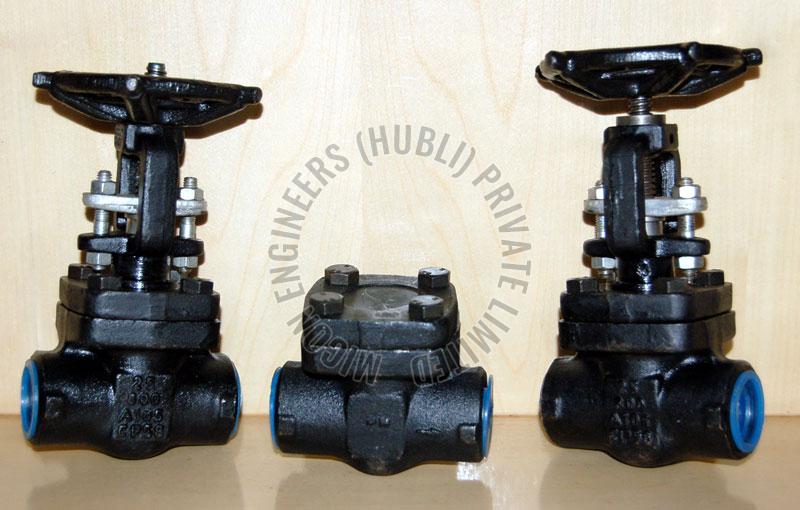

Our Forged Steel Gate, Globe & Lift Check Valve is sturdier and needs low maintenance. Forged Steel Globe Valve that we provide is designed by our expert team of engineers and it complies with international standards such as API 602 / EN ISO 15761, and many more. We are reliable Manufacturer, Exporter and Supplier of Forged Steel Valve offering quality-tested products to the customers.
Features
- OS&Y type, Bolted bonnet. Solid wedge.
- Design Std.API 602 / ISO 15761/ANSI 16.34.
- Valves with integral back seat arrangement.
- Face to Face Dimension as per Mfr standard.
- Testing as per API 598/ EN ISO 12266-1.
- Screwed to BSP as per BS21/ANSI/ASME B1.20 NPT.
- Socket welds to B16.11/ Buttweld ends as per B16.25
On Request
- Full bore construction.
- Welded bonnet construction.
- Locking arrangement.
- NACE as per MR-01-75 / MR 0103.
- Stellited Hard Faces.
- For low temp & Cryogenic Service
- All Exotic Materials (Superduplex/Hastelloy/Monel/Incolloy)
- IBR Valves.
