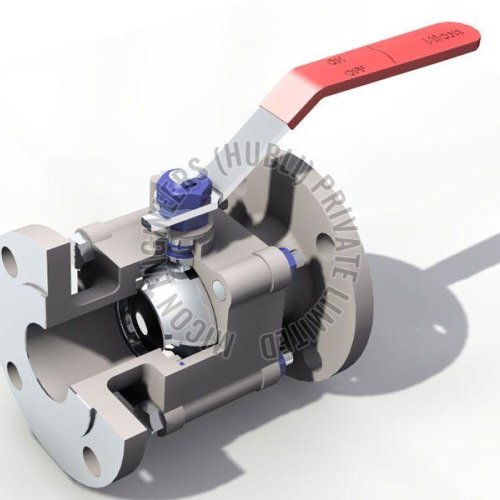

Cast Steel Floating Ball Valve
| Business Type | Manufacturer, Exporter, Supplier, Retailer, Wholesaler |
| Material | Cast Steel |
| Certification | ISO 9001:2008 |
| Application | Gas Fitting, Oil Fitting, Water Fitting |
| Click to view more | |
Preferred Buyer From
| Location | Anywhere in India |
Product Details
Pressure
High
Features
Blow-Out-Proof, Casting Approved, Durable
API 608 / BS 5351
1.1/4inch, 1inch, 2inch, 3/4inch
Download
ViewWe offer Cast Steel Floating Ball Valve that is made in compliance with high quality standards of the industry. Our Floating Ball Valve is required in diverse industrial units. We have excellent manufacturing facilities owing to which our Floating Ball Valve has sturdy construction and higher durability.
Features
- Low operating Torque.
- Design Std.EN ISO17292 / BS 5351.
- Blowout Proof Stem Design & Antistatic Device.
- Face to Face Dimension as per ANSI B 16.10.
- Testing as per EN ISO 12266-1.
- Fire safe tested design API 607/API 6FA.
- Flange Drilling as per ANSI B16.5 RF Serrated
- Full Bore / Reduced Bore
On Request
- NACE as per MR-01-75.
- Locking arrangement.
- Gear/Pneumatic Actuator / Electrical Actuator.
- Emergency sealant injection.
- For low temp & Cryogenic Service as per BS 6364.
- Jacketed valves.
- Other Types of Ends & Drilling .
- Metal Seated valves
Materials of Construction
| Part Name | Material Option |
| Body | ASTM A216 WCB/A217 WC6, WC9, C5, C12/A351 CF8, CF8M, CF3, CF3M/A352 LCB/A890 DUPLEX |
| End Piece | ASTM A216 WCB/A217 WC6, WC9, C5, C12/A351 CF8, CF8M, CF3, CF3M/A352 LCB/A890 DUPLEX |
| Ball | ASTM A351 / CF8, CF8M, CF3, CF3M /A890 DUPLEX |
| Stem | ASTM A276 SS410/SS 304/SS 304L/SS 316/SS 316L/DUPLEX |
| Body Seat Rings | PTFE / GFT |
| Stem Seal | PTFE / GFT |
| Gland | ASTM A276 SS410/SS 304/SS 304L/SS 316/SS 316L / DUPLEX |
| Body Seal | GRAFOIL / PTFE |
| Gland Packing | GRAFOIL / PTFE |
| Lever | CS + GALVANIZED + PVC |
| Lever / Nut | Carbon Steel |
| Stud / Bolt | ASTM A193 B7/B7M/B8/B8M / B16 / ASTM A320/L7 |
| Nut | ASTM A194 2H/2HM/ 8/ 8M / ASTM A320 / 7 |
Garph
