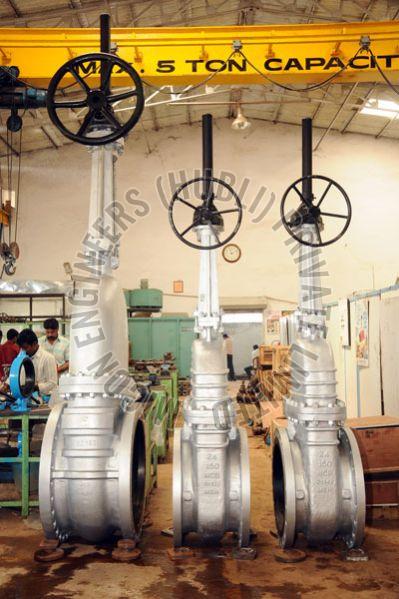

Cast Steel Gate Valve


Cast Steel Gate Valve

Specifications

Size 300-350mm
Material Cast Steel
Certification ISI Certified
Application Gas Fitting, Oil Fitting, Water Fitting
Weight 10-15kg
Structure Double Half Shaft
End connection Butt Weld

Being regarded as prominent Gate Valve Manufacturer & Exporter industrial valves, we make sure that our product is reliable in terms of quality and longer working life. Cast Steel Gate Valve, offered by us, finds its application in several industries. Cast Steel Gate Valve that we provide is easy to install and require very less maintenance.

Features

  • OS & Y type, Bolted bonnet. Flexible wedge.
  • Design Std. API 600 /ANSI 16.34.
  • Face to Face Dimension as per B 16.10.
  • Testing as per API 598/ EN ISO12266-1.
  • Valves with back seat arrangement.
  • Flange Drilling as per ANSI B16.5 RF Serrated / Buttweld ends as per B16.25


On Request

  • API 6D Design.
  • Locking arrangement.
  • Solid wedge.
  • Gear/Electrical Actuator.
  • NACE as per MR-01-75.
  • Stellited Hard face.
  • For low temp & Cryogenic Service as per BS 6364.
  • Jacketed valves.

Yes! I am interested


Materials of Construction

Part Name Material Option
Body ASTM A216 WCB/A217 WC6, WC9, C5, C12/A351 CF8, CF8M, CF3, CF3M/A352 LCB/A890 DUPLEX
Bonnet ASTM A216 WCB/A217 WC6, WC9, C5, C12/A351 CF8, CF8M, CF3, CF3M/A352 LCB/A890 DUPLEX
Wedge ASTM A216 WCB/A217 WC6, WC9, C5, C12/A351 CF8, CF8M, CF3, CF3M/A352 LCB/A890 DUPLEX
Seat Rings ASTM A216 WCB/A217 WC6, WC9, C5, C12/A351 CF8, CF8M, CF3, CF3M/A352 LCB/A890 DUPLEX
Stem ASTM A276 SS410/SS 304/SS 304L/SS 316/SS 316L/DULPEX
Gland ASTM A276 SS410/SS 304/SS 304L/SS 316/SS 316L/DULPEX
Gland Flange ASTM A216 WCB/A217 WC6, WC9, C5, C12/A351 CF8, CF8M, CF3, CF3M/A352 LCB/A890 DUPLEX
Yoke sleeve ASTM A439 D2/ASTM A473 416 /S.G.IRON
Gland Packing GRAFOIL / PTFE
Bonnet Gasket SPIRAL WOUND SS304 / 304L / 316 / 316L/ 321 + GRAFOIL / PTFE
Body Stud ASTM A193 B7/B7M/B8/B8M /B16/ASTM A320/L7
Body Nut ASTM A194 2H/2HM/ 8/ 8M /ASTM A320/ 7
Hand Wheel S.G. Iron / Malleable Iron / Carbon Steel

Garph

Garph
